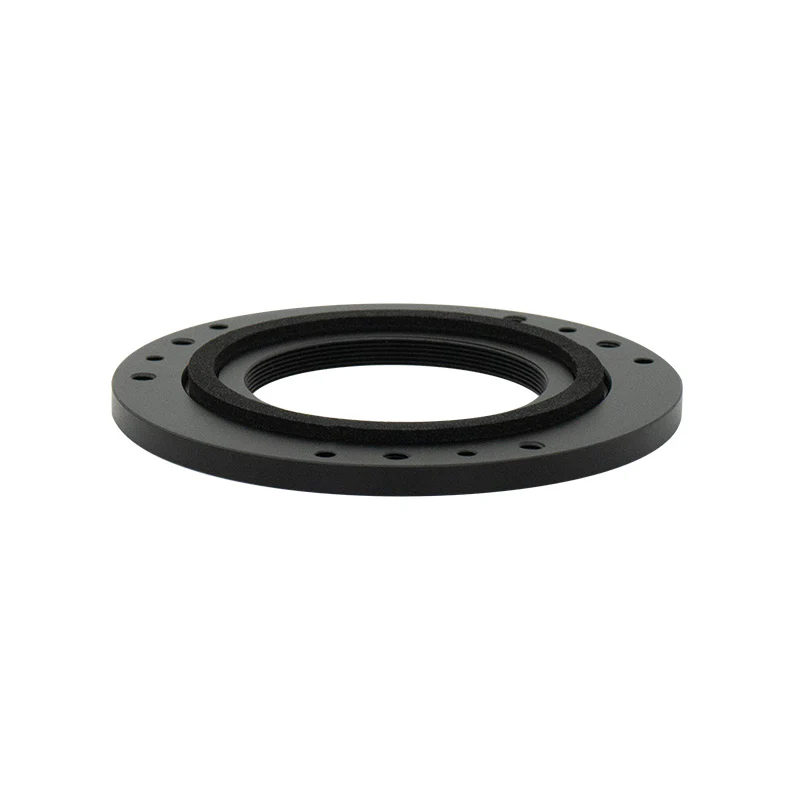

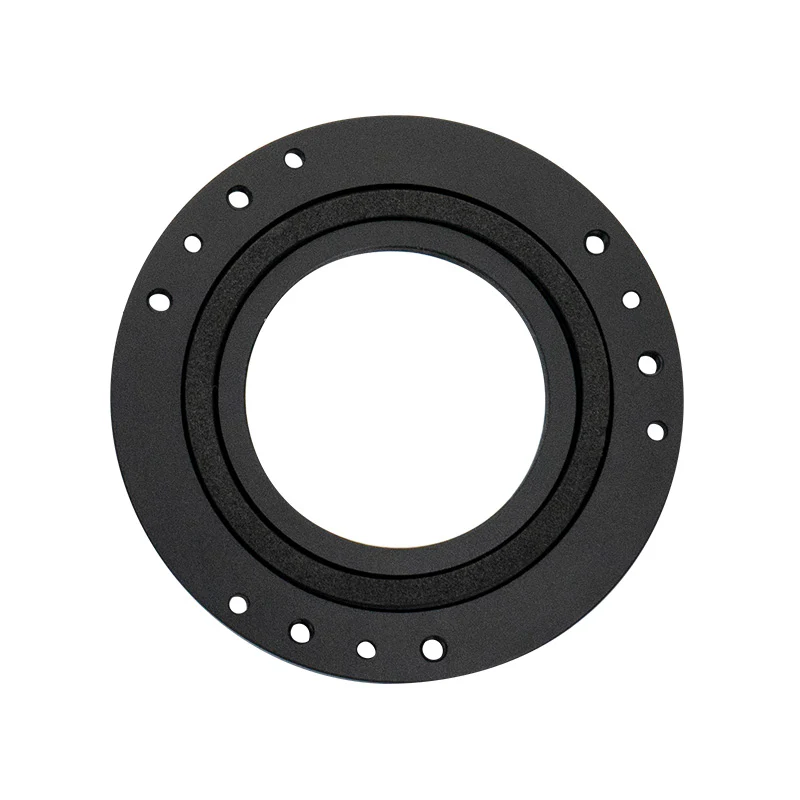

ZWO M48 Sensor Tilt Adapter Plate

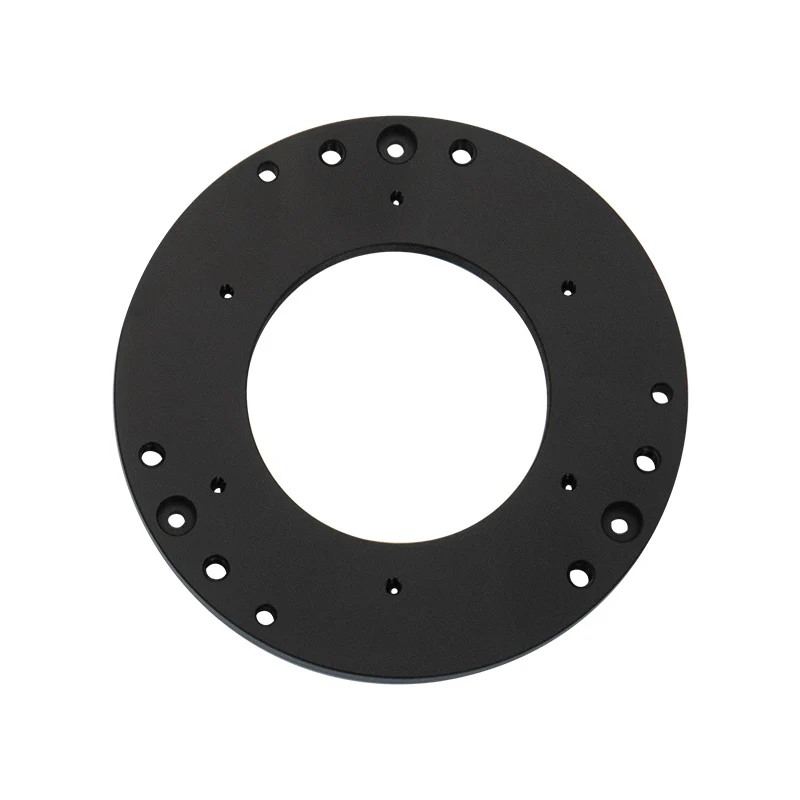

The M48 sensor tilt plate is independently developed by ZWO and specially made to match the telescope with the M48 thread. The thickness is 5mm. It has several screw holes on the surface so that you can easily connect it to the M68 OAG and APS-C & full-frame camera like ASI2600/ASI6200/ASI2400.

Best Solution of 55mm Back Focus Length

Mechanical Drawing

• Suitable for APS-C and full-frame cameras (ASI2600, ASI6200, and ASI2400)
• Connect it to M68 OAG easily
• Thickness: 5mm

• ZWO M48 Sensor Tilt Adapter Plate
