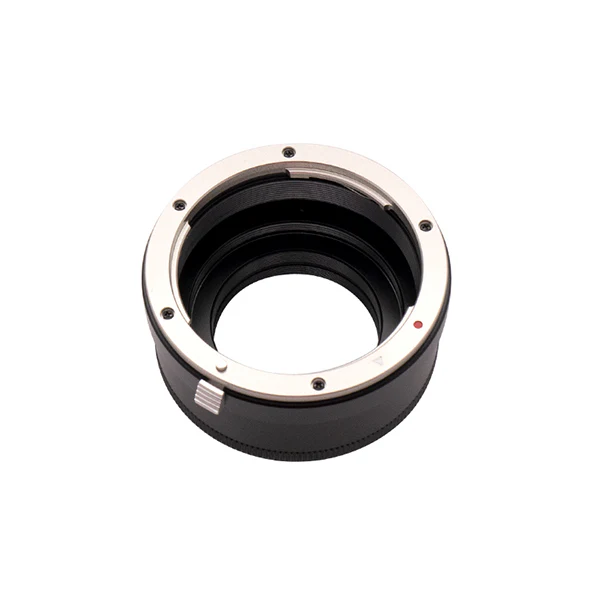

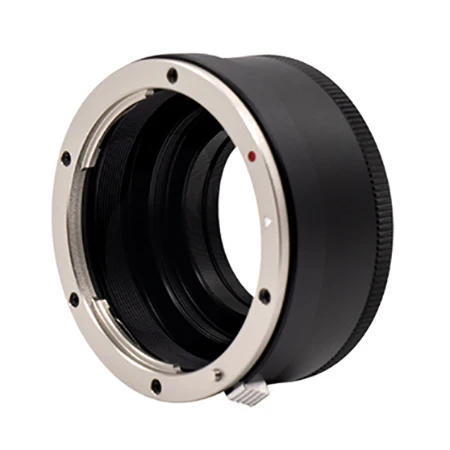

ZWO EOS-T2 Version II Adapter for all ASI Cameras

The ZWO-EOS-T2-Ⅱ adapter is made of two parts, an EOS-T2 adapter and a 5 mm length T2-extender.  It is suitable for all ASI cameras.

This Version Ⅱ is nonadjustable and supports a Canon EF lens only.

When the EOS-T2 adapter is used without the T2-extender it is suitable for the 17.5 mm backfocus distance of the ASI cameras, such as the Cooled cameras and the ASI174, ASI294, ASI183, ASI1600, ASI533, and ASI2600 cameras. (Note: This excludes the ASI6200 cameras.)

Adapter Type	Canon (EF Mount)	Nikon (F Mount)	Thread
Lens Adapter Only	ZWO-EOS-T2-II	ZWO-NIKON-T2-II	M42 x 0.75
Lens Adapter w/ Filter Drawer	ZWO-FD-EOS	ZWO-FD-Nikon	M42 x 0.75
Additional Filter Holder for Filter Drawer	ZWO-F-HLDR-DSLR	ZWO-F-HLDR-DSLR	—
Lens Adapter to 2" ZWO Filter Wheel (ASI6200, 2400, and 2600 cameras)	ZWO-EFW2-EOS	ZWO-EFW2-NIKON	M54 x 0.75
Lens Adapter to 1.25"/31mm/36mm ZWO Filter Wheels & Other Cameras	ZWO-EFW-EOS-II	ZWO-EFW-NIKON-II	M42 x 0.75



When the EOS-T2 adapter is used with the T2-extender it is suitable for all 12.5 mm backfocus ASI cameras, notably the ASI120, ASI224, ASI290, ASI178, and  ASI385 cameras.

You can use a 2-inch IR-CUT filter with the adapter.

• The ZWO-EOS-T2-Ⅱ adapter is an EOS-T2 adapter and a 5 mm length T2-extender.
• It is suitable for all ASI cameras.
• This Version Ⅱ is nonadjustable and supports a Canon EF lens only.
• Without the T2-extender it suites the 17.5 mm backfocus distance of many ASI cameras. (Note: This excludes the ASI6200 cameras.)
• With the T2-extender it is suitable for all 12.5 mm backfocus ASI cameras.
• You can use a 2-inch IR-CUT filter with the adapter.
• More information below.
