William Optics iOptron Skyguider Pro Dec Adapter & Vixen Style Clamp

William Optics iOptron Skyguider Pro Dec Adapter

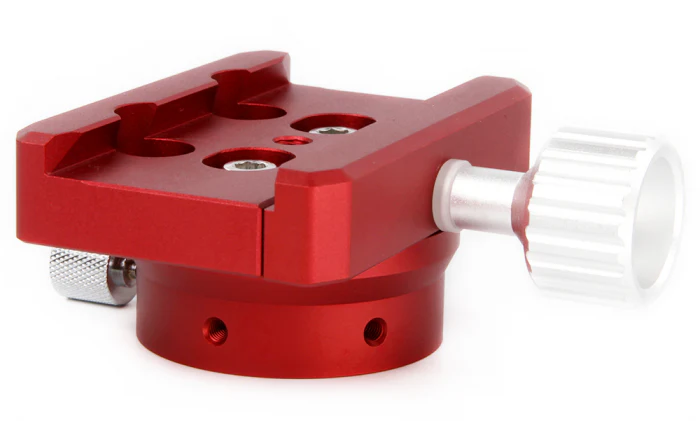

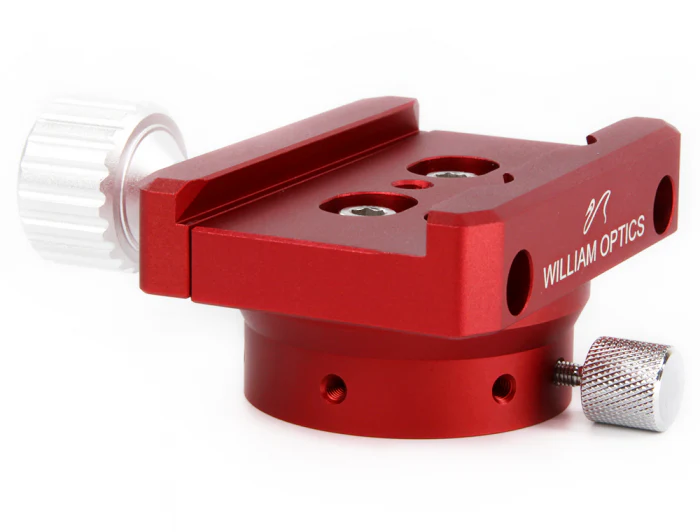

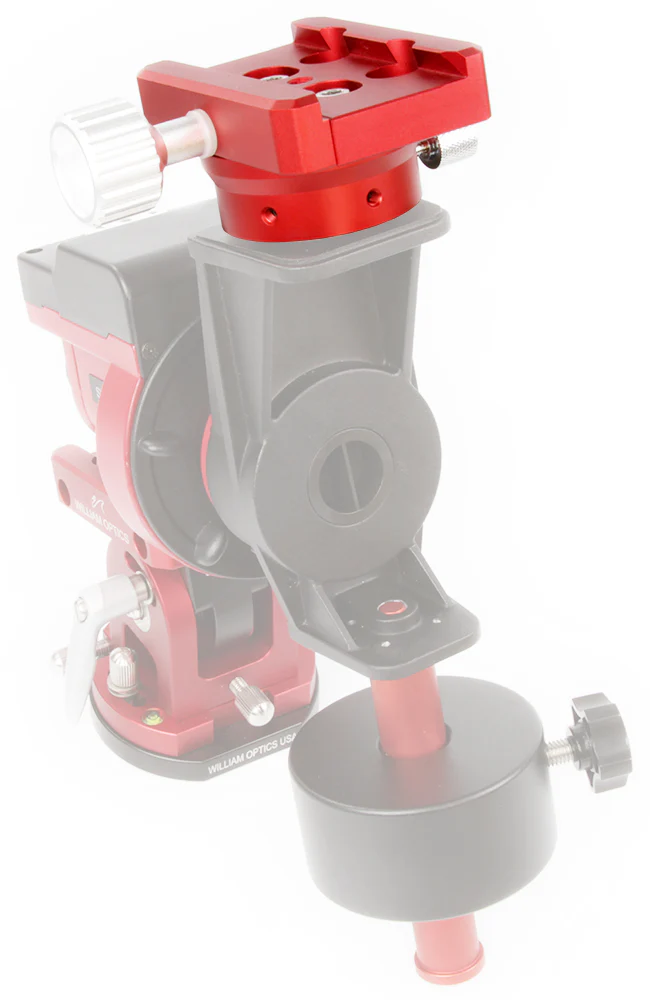

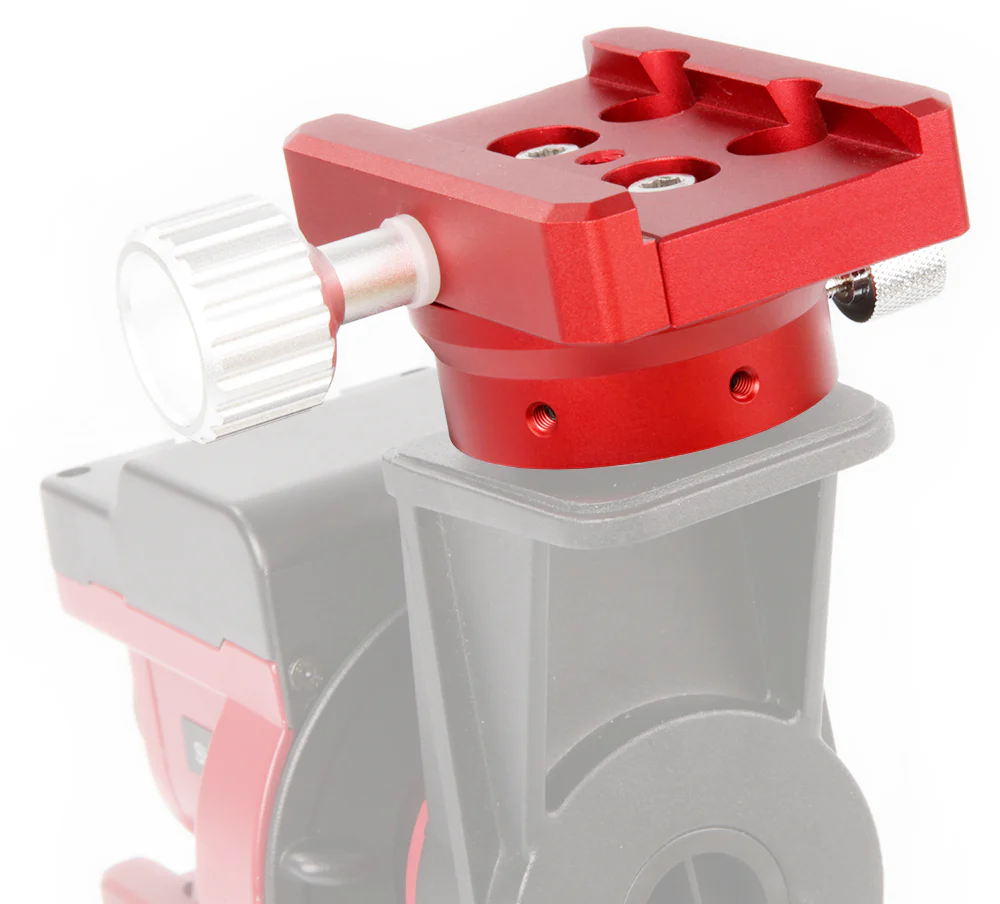

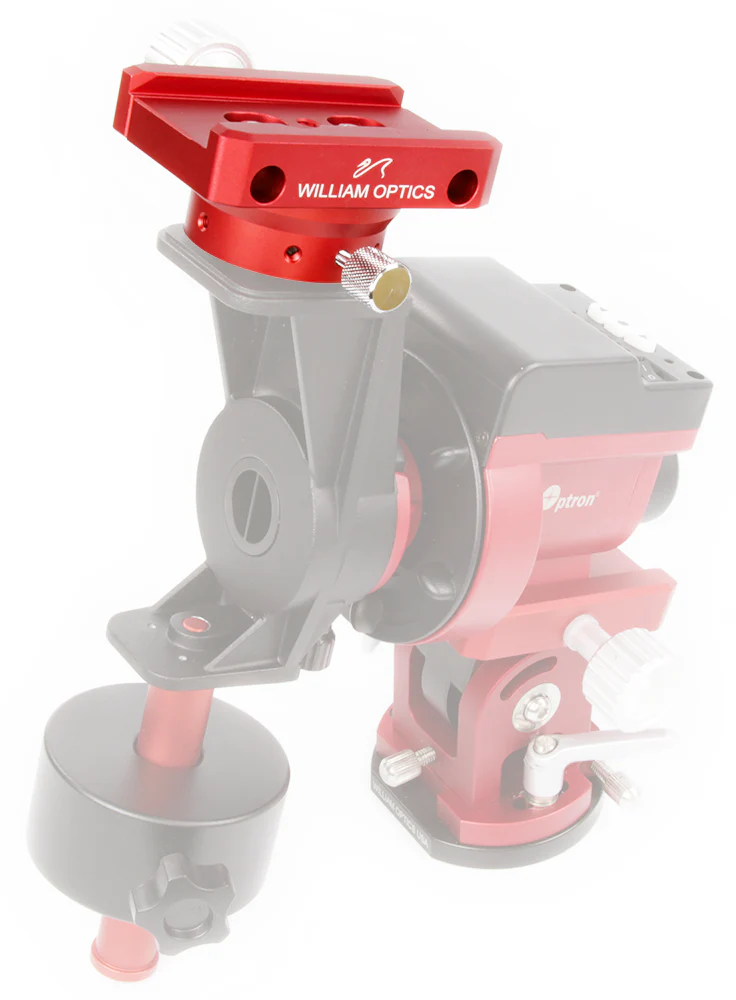

This iOptron Skyguider Pro dec adapter from William Optics is a great tool that will give two functions. First, and foremost, the adapter will allow users to attach a Vixen style saddle onto their iOptron Skyguider Pro mount.

As a bonus, this adapter can act as a riser block. It will raise the dovetail up just a bit and make it easier to focus longer refractors.

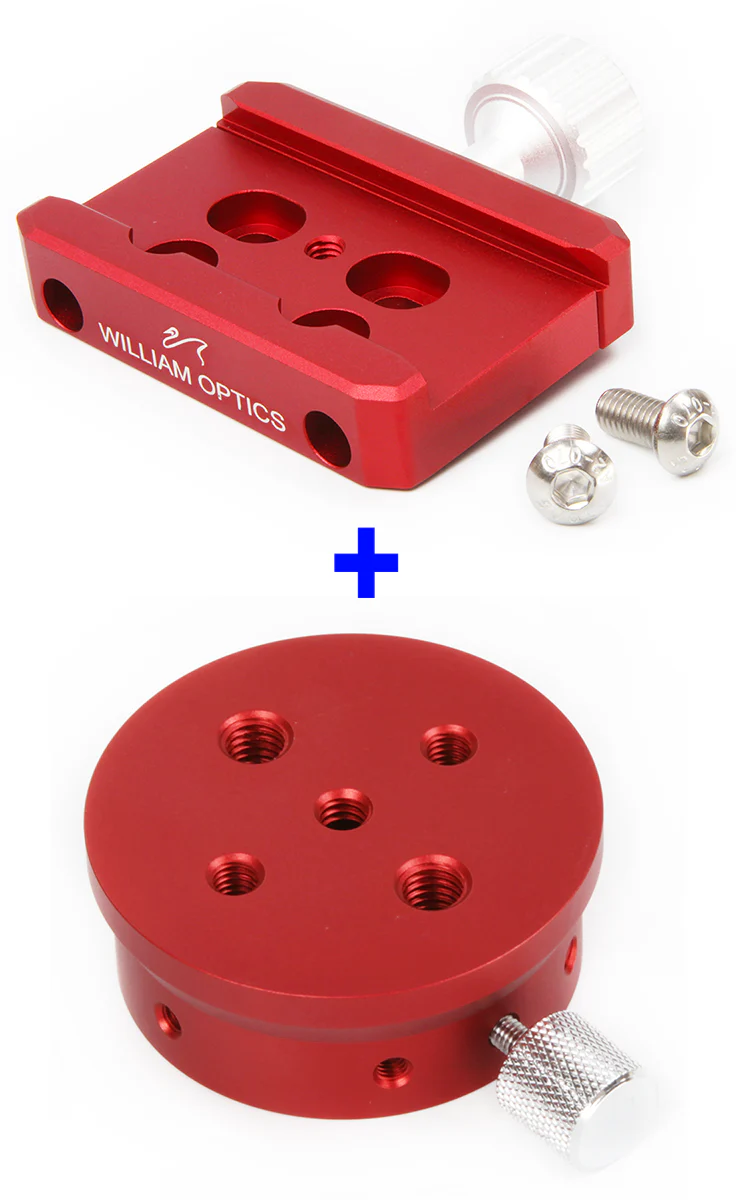

The iOptron Skyguider Pro dec adapter from William Optics lets you attach a Vixen style saddle to the Skyguider Pro, making it possible to mount a small telescope with a Vixen style mounting rail. The saddle (shown in the 3rd photo, but sold separately) attaches to the adapter through a pair of M6 and M8 mouting holes or a 1/4"-20 hole in the middle.

William Optics Vixen Style Clamp

This William Optics Vixen Style saddle clamp is designed to accept Vixen-style dovetails. It includes an oversized aluminum lock knob for easy gripping, even with gloves on!

William Optics Vixen Style saddle clamp Features

• Length: 90 mm
• Width: 63 mm
• Central Depth: 12.5 mm
• Outer Edge Depth: 18.5 mm
• Mounting Holes: Four M8 and two 1/4-20
• Weight: 8.1 ounces

• William Optics iOptron Skyguider Pro Dec Adapter allows you to attach a Vixen style saddle onto your iOptron Skyguider Pro mount
• The Pro Dec Adapter will raise the dovetail up to make it easier to focus longer refractors
• William Optics Vixen Style saddle clamp is designed to accept Vixen-style dovetails

• William Optics iOptron Skyguider Pro Dec adapter
• William Optics SP90 Saddle Plate for Vixen Dovetails - 90 mm - Red
• Type - V-Series (Vixen)
• Saddle Length - 3.5"
• Pro Dec Adapter weight - 140g
