Stellarvue 0.8X Reducer Flattener for SVR102T with 2.5" Focuser

The 0.8X Reducer Field Flattener for the SVR102T with 2.5-Inch Focuser by Stellarvue:

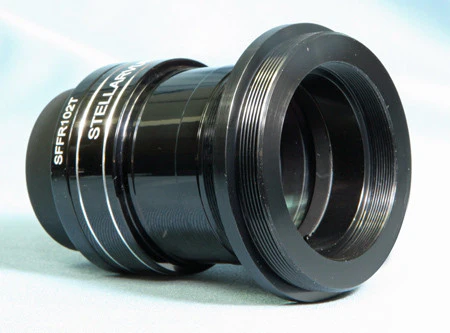

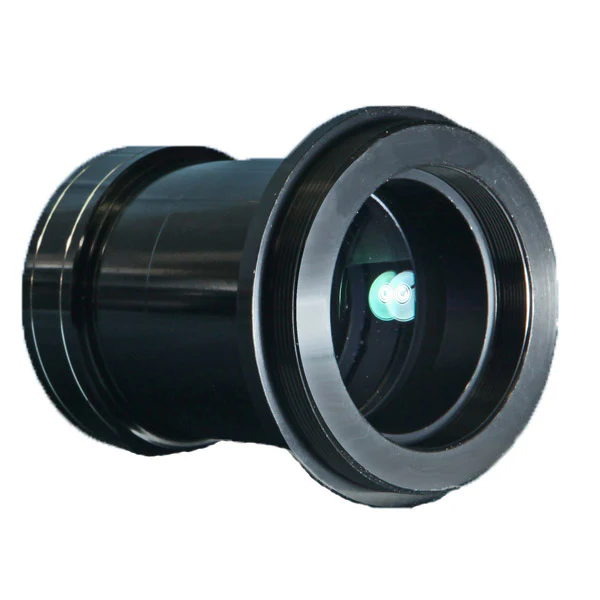

The Stellarvue SFFR102-25 Reducer Flattener is optimized for use with the SVR102T that sports either an SV 2.5-inch focuser or a 2.5-inch Feather Touch focuser.

The SV Reducer Flattener threads into the 2.5-inch focuser. A 48 mm filter thread is machined into the reducer flattener, allowing you to add standard 2-inch filters when desired.

The focal reduction of the SFFR102-25 is 0.8X, which converts your SVR102T to f/5.6.

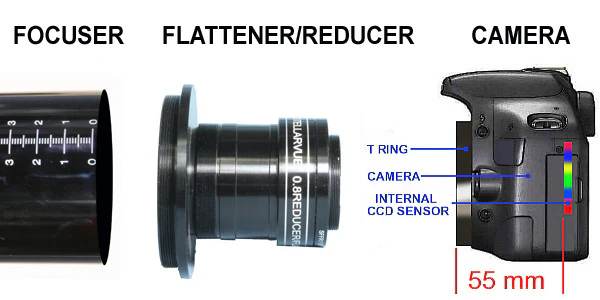

The backfocus of the Stellarvue 2.5-inch Reducer Flattener is 55 mm. Since a DSLR with a T-ring has a 55 mm backfocus, it is a simple matter to use the reducer/flattener for DSLR imaging. Just insert the reducer/flattener into the SVR102T focuser and then thread the camera/t-ring combo onto the flattener. An example is shown in the additional images section to the left.

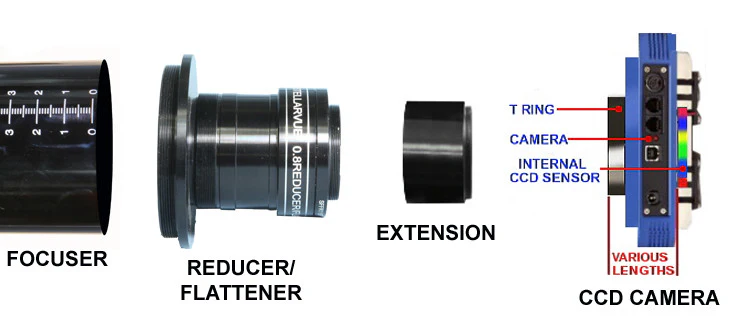

If you will be imaging with a CCD camera as opposed to a DSLR, extension tubes may be required to achieve focus. It is important that you know the distance between your camera's T-thread and the sensor, and it is equally important to remember that the distance from the back of the field flattener/reducer to the CCD sensor remains at 55 mm. If the CCD camera, for instance has a backfocus of only 35 mm, a 20 mm extension will be needed. If any extension tubes are required for your set-up, they will thread between the camera and the field flattener, as shown in the example provided in additional images. Please note that the camera side of the reducer/flattener requires extension rings with a standard T-thread (M42x.75).



OPT Product Number: SV-SFFR102-25
