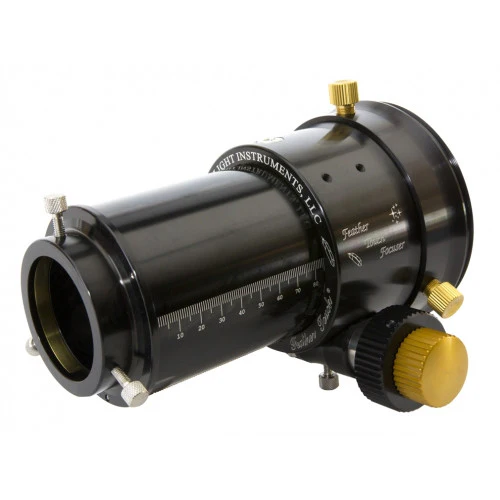

Starlight Inst. 2.5" Feather Touch Heavy Duty Dual-Speed Focuser

Feather Touch 2.5-inch Diameter Dual Speed Telescope Focuser with 3.5-inch Draw tube travel, brake, and Integral TFPE Coupled Collar.

Starlight Instruments 2.5-inch Feather Touch Heavy Duty Dual-Speed Focuser Specifications:

• Draw Tube Thread: M63X1 Female Thread
• Draw Tube Travel: 3.5-inch (88.9 mm)
• Lifting Capacity: 13 to 15-pounds
• Thread on Entry (OTA/ Front) Side of Draw Tube: M95x1 Male Thread
• Reduction Ratio: 10:1
• Finderscope Hole Thread Dimension: 8x32
• Draw Tube Drive Mechanism: Rack and Pinion
• Racked In from Mounting Face: 3.672-inch (93.27 mm)
• Racked Out from Mounting Face: 7.368-inch (187.15 mm)



The 2-inch Compression Ring End Cap is sold separately. (SI-EC25-2005-1)

Starlight Instruments Product Number: FTF2535HD
