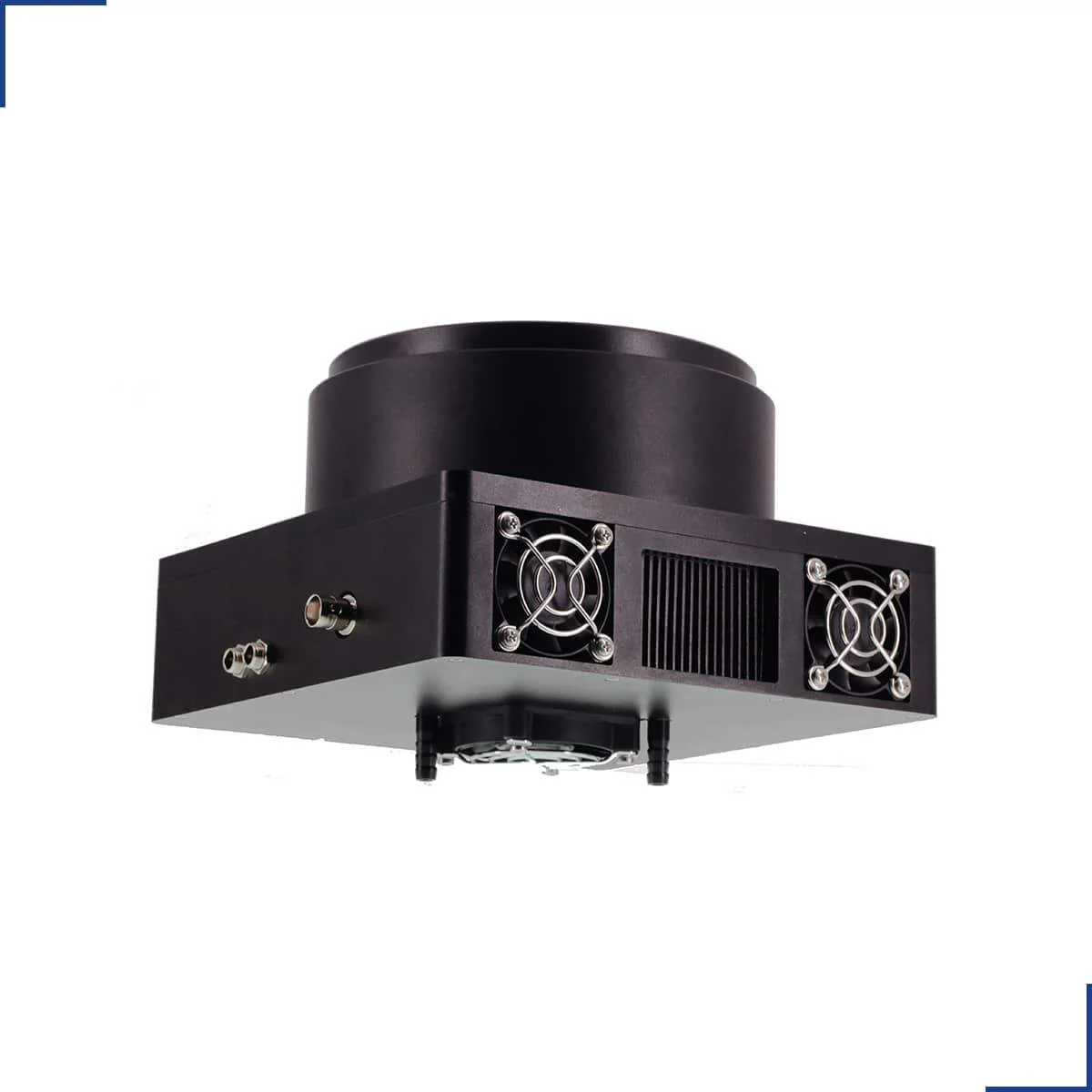

QHY 6060 FSI Class 1 Cooled Scientific CMOS Camera

QHY6060 is a big format scientific CMOS camera with 37.7 Megapixel, 61mm square (89mm diagonal) Gpixel Gsense6060 sensor, 10um pixel size, 14bit ADC, 6K*6K resolution. It has both a back-illuminated version and a front-illuminated version. The FSI version has 72% peak QE and the BSI version has 95% peak QE

QHY6060 has a 2-stage TEC cooler and it is air-cooling / water cooling compatible. QHY6060 has USB3.0 high-speed interface.

The BSI QHY6060 also has a soft X-ray response. In order to use it in a full vacuum environment. The camera needs to be put into a vacuum environment. QHYCCD can offer a special customized design of the full vacuum version. Please contact QHYCCD if you need this version.

Mechanical Dimensions



Curves

• Big format scientific CMOS camera with 37.7 Megapixel, 61mm square (89mm diagonal)
• Has both a back-illuminated version and a front-illuminated version
• Has a 2-stage TEC cooler and it is air-cooling / water cooling compatible
• QHYCCD can offer a special customized design of the full vacuum version. Please contact QHYCCD if you need this version.

• QHY 6060 FSI Class 1 Cooled Scientific CMOS Camera
