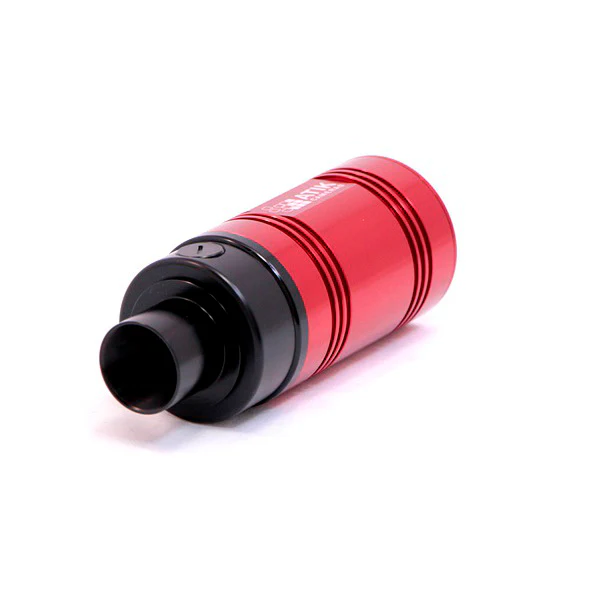

ATIK 414EX Color CCD Camera
The Atik 414EX is a worthy successor to the 314L+, one of the best cameras for astrophotography in the industry. Includes the new ICX825 sensor, the much anticipated replacement for the highly esteemed ICX285. The same EXview HAD CCD II employed on the 428EX, 460EX, and 490EX is also used on the 414EX. This coupled with a larger pixel size gives this camera greater sensitivity than anything that could previously be acquired in this price range.
In comparison with the 314L+ at 650nm, the 414EX is 60% more sensitive. Actually, the 414EX has greater sensitivity than the already impressive 460EX, making this the ideal camera for the imaging aficionado with budget constraints.
However, the 414EX's sensitivity isn't its only outstanding feature. Its cooler is regulated, allowing your image calibration to remain consistent, and has the ability to comfortably achieve -30 degrees C below ambient. With regards to calibration, for the majority of applications, the camera has a dark noise so low that dark frames become an option instead of a requirement, allowing you to spend more time on imaging.
The Atik 414EX's compact size makes it usable with Fastar/ Hyperstar configurations with absolutely no obstruction even on the 6 inch model. Stress on the corrector plate is kept a minimum due to the light weight of the camera.
ATIK 414EX Color CCD Camera Specifications...
In comparison with the 314L+ at 650nm, the 414EX is 60% more sensitive. Actually, the 414EX has greater sensitivity than the already impressive 460EX, making this the ideal camera for the imaging aficionado with budget constraints.
However, the 414EX's sensitivity isn't its only outstanding feature. Its cooler is regulated, allowing your image calibration to remain consistent, and has the ability to comfortably achieve -30 degrees C below ambient. With regards to calibration, for the majority of applications, the camera has a dark noise so low that dark frames become an option instead of a requirement, allowing you to spend more time on imaging.
The Atik 414EX's compact size makes it usable with Fastar/ Hyperstar configurations with absolutely no obstruction even on the 6 inch model. Stress on the corrector plate is kept a minimum due to the light weight of the camera.
- ADC: 16- bit
- Readout Noise: 5e- typical value
- Interface: Mini USB 2.0 High Speed
- Power: 12v DC 1A
- Minimum Exposure Time: 0.001 seconds
- Maximum Exposure Time: Unlimited
- Cooling: Thermoelectric set point with max T=>-30 degrees C
- Back Focus: 13mm
- Weight: 14 oz.
- CCD Sensor: Sony ICX825
- Horizontal Resolution: 1392 pixels
- Vertical Resolution: 1040 pixels
- Pixel Size: 6.45 micrometer x 6.45 micrometer
- ATIK 414EX Camera Body
- Sony ICX825 Color Sensor
$706.30
Original: $2,018.00
-65%ATIK 414EX Color CCD Camera—
$2,018.00
$706.30
Description
The Atik 414EX is a worthy successor to the 314L+, one of the best cameras for astrophotography in the industry. Includes the new ICX825 sensor, the much anticipated replacement for the highly esteemed ICX285. The same EXview HAD CCD II employed on the 428EX, 460EX, and 490EX is also used on the 414EX. This coupled with a larger pixel size gives this camera greater sensitivity than anything that could previously be acquired in this price range.
In comparison with the 314L+ at 650nm, the 414EX is 60% more sensitive. Actually, the 414EX has greater sensitivity than the already impressive 460EX, making this the ideal camera for the imaging aficionado with budget constraints.
However, the 414EX's sensitivity isn't its only outstanding feature. Its cooler is regulated, allowing your image calibration to remain consistent, and has the ability to comfortably achieve -30 degrees C below ambient. With regards to calibration, for the majority of applications, the camera has a dark noise so low that dark frames become an option instead of a requirement, allowing you to spend more time on imaging.
The Atik 414EX's compact size makes it usable with Fastar/ Hyperstar configurations with absolutely no obstruction even on the 6 inch model. Stress on the corrector plate is kept a minimum due to the light weight of the camera.
ATIK 414EX Color CCD Camera Specifications...
In comparison with the 314L+ at 650nm, the 414EX is 60% more sensitive. Actually, the 414EX has greater sensitivity than the already impressive 460EX, making this the ideal camera for the imaging aficionado with budget constraints.
However, the 414EX's sensitivity isn't its only outstanding feature. Its cooler is regulated, allowing your image calibration to remain consistent, and has the ability to comfortably achieve -30 degrees C below ambient. With regards to calibration, for the majority of applications, the camera has a dark noise so low that dark frames become an option instead of a requirement, allowing you to spend more time on imaging.
The Atik 414EX's compact size makes it usable with Fastar/ Hyperstar configurations with absolutely no obstruction even on the 6 inch model. Stress on the corrector plate is kept a minimum due to the light weight of the camera.
- ADC: 16- bit
- Readout Noise: 5e- typical value
- Interface: Mini USB 2.0 High Speed
- Power: 12v DC 1A
- Minimum Exposure Time: 0.001 seconds
- Maximum Exposure Time: Unlimited
- Cooling: Thermoelectric set point with max T=>-30 degrees C
- Back Focus: 13mm
- Weight: 14 oz.
- CCD Sensor: Sony ICX825
- Horizontal Resolution: 1392 pixels
- Vertical Resolution: 1040 pixels
- Pixel Size: 6.45 micrometer x 6.45 micrometer
- ATIK 414EX Camera Body
- Sony ICX825 Color Sensor
